Lower trapezius: the key to scapula control?

The lower trapezius is an important periscapula muscle that plays a vital role in dynamic scapula movement. Chris Mallac explores its anatomy and biomechanics, and explains the implications for rehab when trying to activate the lower trapezius from early stage painful shoulder stages to end stage high performance



The lower trapezius is a muscle that is proposed to play an important role in ‘ideal’ scapula mechanics. It is agreed that poor scapula movement (scapula dyskinesis) during overhead activities may predispose the athletic shoulder to injury in the form of impingement, subacromial bursitis and instability^{Scand J Rehabil Med (1995) 27: 243-252 Shoulder. J Sport Rehabil (1995) 4: 122-154 Orthop Clin North Am (2000) 31: 247-261}. Due to the role it plays in scapula function and subsequent athletic shoulder pain, the lower trapezius has received a lot of interest, regarding both its activation ratios against the other trapezius as well as its timing during movement^{Scand J Med Sci Sports. 2007;17:25-33 Br J Sports Med. 2004;38:64-68 Phys Ther. 2000;80:276-291 Int J Sports Med. 1997;18:618-624}.

Anatomy

Surprisingly, very little academic research has been conducted on the exact anatomy of the lower trapezius. There is however a plethora of research regarding the role of the lower trapezius in scapula function and the association between lower trapezius dysfunction and shoulder pain. The most notable research piece on the anatomy of the lower trapezius was only conducted relatively recently in 1994 by Johnson et al^{Clin Biomech 1994;9:44–50}. They found that the lower trapezius originates on the spine and extends from T2 to T12 and inserts onto the spine of the scapula from the acromian process to its root. It is closely aligned to the middle trapezius which attaches to the C7 and T1 vertebrae, and this also attaches to the spine of the scapula. It is a multipennate muscle that is innervated by the accessory nerve and the ventral rami of the third and fourth cervical nerves via the cervical plexus (see figures 1 and 2).

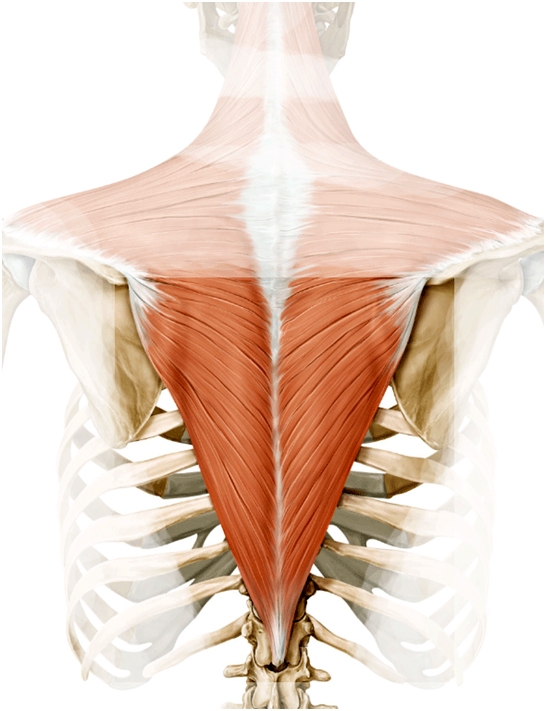

Figure 1: Anatomy of lower trapezius

Function of the lower trapezius

The scapula forms the basis of all upper limb kinetic chain movements. It must be mobile enough to achieve the optimal positions needed to allow the humerus to move unimpeded and without impingement. It also needs to remain solid and stable during upper limb movements, particularly overhead activities in sport to allow the proper transmission of force from the body to the hand – thus highlighting its importance in sports such as swimming, tennis and throwing sports.

Figure 2: The anatomical lines of action of the component fibres of the trapezius

---

The lower trapezius is one muscle that plays an important role in scapula movement and positioning, and also dynamic scapula stability. The functional scapula motions of upward rotation, posterior tilt, and external rotation increase the width of the subacromial space during humeral elevation. However, a lack of proper scapula function (scapula dyskinesis) increases the translation of the humeral head, which alters scapula position and motion in both static and dynamic applications possibly leading to injury (see figure 3)^{Sports Med. 2008;38(1):17–36 Br J Sports Med. 2010;44(5):319–327 Clin Biomech (Bristol, Avon). 2003;18(5):369– 379 Br J Sports Med. 2010;44(5):300–305}.

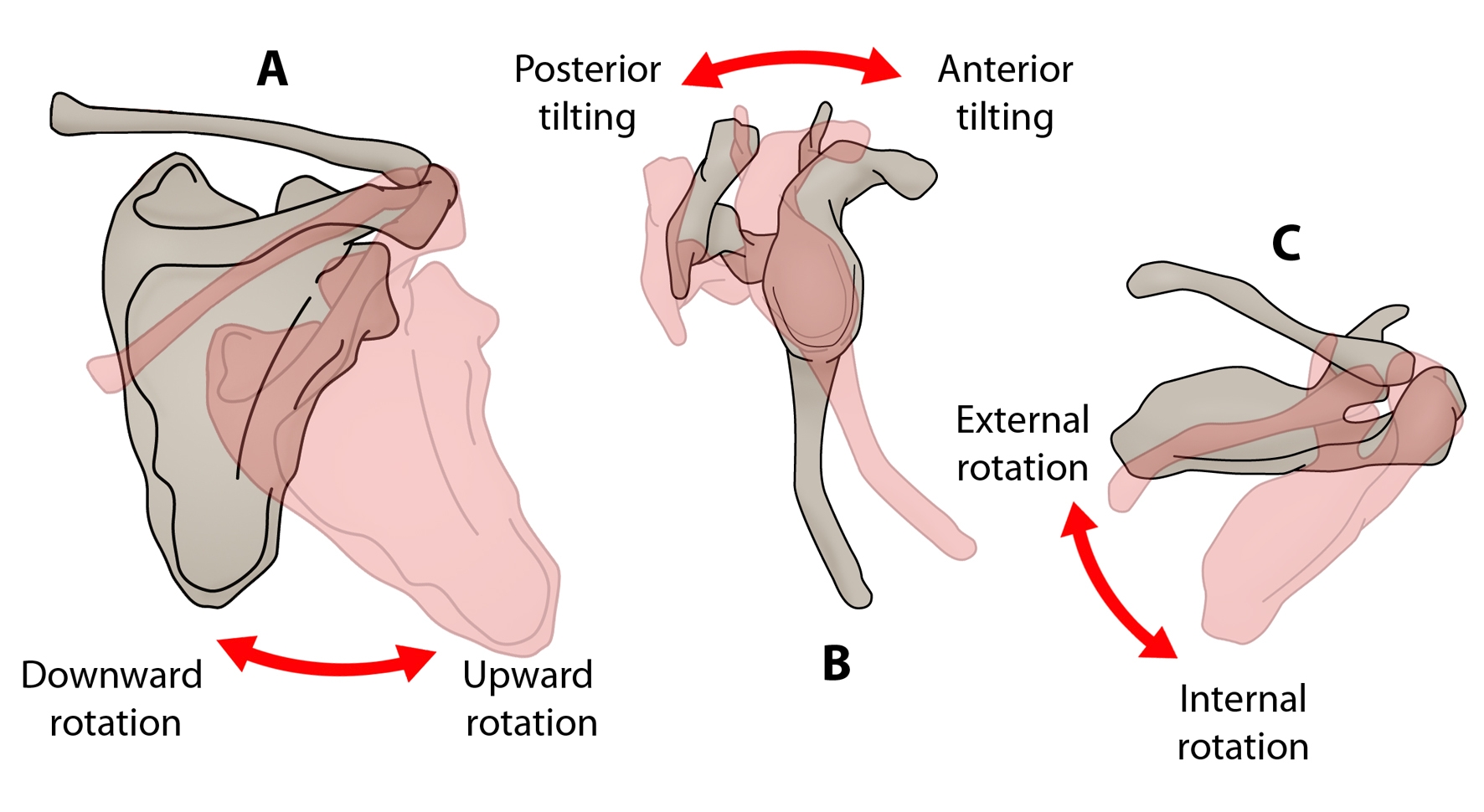

Figure 3: Scapular motions

---

The lower trapezius in one of the many muscles that plays a role in the desired upward rotation, posterior tilt and external rotation of the scapula along with the middle trapezius and serratus anterior. It must be noted that the role the lower trapezius plays in scapula function cannot be discussed in isolation as it works with the other muscles to create a ‘force couple’ at the scapula. Furthermore, the contribution of ‘other’ competing factors in scapula dysfunction such as pectoralis minor tightness, posterior shoulder capsule tightness and thoracic spine stiffness need to also be considered^{J Orthop Sports Phys Ther. 2009 February; 39(2): 90–104}.

The exact role of the trapezius during shoulder motion has been thoroughly researched by Johnson et al (1994)^{Clin Biomech 1994;9:44–50}. Calculating the anatomical lines of action of the component fibres of the trapezius, and considering these lines of action in combination with the changing scapulothoracic axis of rotation, they found that the middle and lower trapezius are ideally suited for scapular stabilization and external rotation of the scapula. This is because the instantaneous centre of rotation of the scapula on the thorax has been found to move from the root of the spine towards the AC joint, nearly along the line of trapezius insertion.

The middle trapezius directed medially has only a small moment arm for upward rotation and is subsequently likely most active to offset protraction from the serratus anterior. The lower trapezius is the only component of the trapezius that can significantly upwardly rotate the scapula. However its relative moment arm will change across the range of motion for arm elevation. As the scapula moves through upward rotation (a movement that shortens the lower trapezius), it also protracts and elevates somewhat (movements that elongate the lower trapezius). So in fact, the actual change in muscle fibre length can remain somewhat unchanged, making the lower trapezius contraction almost exclusively isometric.

The multiple roles of the lower trapezius can therefore be summarised as follows:

• Stabilises the scapula as the shoulder moves into abduction. The initial movement and inertia of the humerus in abduction causes a ‘drag’ effect on the scapula and pulls it into a downward rotation position. The lower trapezius works as a feedforward muscle prior to abduction to contract, and ‘hold’ the scapula steady to counteract the downward rotation ‘drag’ effect. It therefore neutralizes the scapula at the start of abduction. During the primary 30 degrees of abduction, the scapula does not move but is held stable by the lower trapezius.
• During progressive shoulder abduction (from 30 degrees to 120 degrees), the lower trapezius works to create upward rotation of the scapula (along with the serratus anterior). The lower trapezius muscle stabilises the scapula against the protraction effect produced by the serratus anterior.
• At the uppermost levels of abduction (120+ degrees) it works to also create posterior tilt of the scapula. It counteracts the elevation effect of the upper trapezius and levator scapulae during end of range abduction.
• Whereas the upper trapezius does not appear to have a line of action for being a substantive upward rotator in healthy persons, the lower trapezius assists in producing scapulothoracic upward rotation. Furthermore, evidence indicates that the lower trapezius is the primary upward rotator of the scapula (along with serratus anterior).
• Lower trapezius also retracts and depresses the scapula during horizontal pulling movements such as rowing and works with other scapular retractors in postural positions to counteract the effect of scapular protraction whilst sitting.
• Lower trapezius activity has been found to be relatively low at angles less than 90 degrees of scapular abduction and flexion, with exponential increases from 90 to 180 degrees^{Journal of Orthopaedic and Sports Physical Therapy 2009;39(2):105–117}. This would highlight the increasing role it plays in upward rotation and posterior tilt as the shoulder abducts above 90 degrees.

Dysfunction and shoulder pain syndromes

As with any research study that demonstrates a relationship between a muscle dysfunction and associated joint pain, care must be taken to assume a cause and effect relationship between lower trapezius dysfunction and subsequent shoulder pain. Is it that the muscle is dysfunctional and this leads to poor scapula movement and hence pain syndromes? Or is it that pathology in the joint develops first and this then inhibits the lower trapezius? Whether it is cause or effect, the presence of a dysfunctional lower trapezius leads the clinician to rationalise that the muscle needs some direct intervention to improve its function.

Numerous studies have been conducted on the role that the periscapular muscles play in scapula function/dysfunction and associated pain syndromes. It has been recognised that the scapula muscles (lower trapezius included) play a vital role in the ability of the rotator cuff to function properly. They create a stable scapula that allows the rotator cuff to function more efficiently by allowing the maintenance of the optimal length to tension ratios in the rotator cuff^{Am J Sports Med. 2006;34(10):1643–1647 Arch Phys Med Rehabil. 2002;83(1):60-9 Physiotherapy. 2005;91(3):159-64 Clin Biomech (Bristol, Avon). 2000;15:95-102}. Below is a summary of the findings of a select few (of the many) studies relating to lower trapezius dysfunction and pain syndromes:

1. A lack of activity in the lower trapezius has been observed with overhead movements that cause impingement, often in combination with an excessive upper trapezius activation ^{BMC Musculoskeletal Disorders 2010;11:45}.
2. Mechanisms often associated with secondary subacromial impingement are low levels of serratus anterior and lower trapezius muscle activation, which cause prominence of the medial border and inferior angle of the scapula, combined with its excessive internal rotation^{J Manipulative Physiol Ther. 2007;30(1):69-75 Physiotherapy. 2001;87(9):458-69 J Bone Joint Surg AM. 1998;80(5):733-738}.
3. Lower trapezius strength is decreased in individuals with unilateral neck pain^{J Orthop Sports Phys Ther 2011 41: 260-265 J Spine 2012, 1:3}.
4. Significantly delayed middle and lower trapezius activation has been demonstrated in overhead athletes with shoulder impingement, in response to an unexpected drop of the arm from an abducted position^{Am J Sports Med. 2003;31(4):542–549}. The lower trapezius appears to react too slowly when compared to the upper trapezius, which may become overactive, leading to scapular elevation rather than upward rotation.
5. Cools et al (2004) found a decrease in lower trapezius activity during isokinetic scapula protraction in 19 overhead athletes with subacromial impingement^{Br J Sports Med. 2004;38:64-68}.
6. Cools et al (2007) reported that athletes with impingement have a significantly higher upper trapezius activation compared to normal subjects, a significant decrease in lower and middle trapezius activation, and altered trapezius muscle balance^{Am J Sports Med. 2007;35: 1744-1751}.

Lower trapezius activity in selected exercises

A significant amount of conflict exists in the literature regarding the choice of exercises that should be used to rehabilitate the lower trapezius. Some authors argue that the threshold for recruitment should be kept low, because high levels of muscle activity is not reflective of the role the lower trapezius plays in function^{J Orthop Sports Phys Ther. 2011;41(7):520-5 ConScientiae Saúde, vol. 11, núm. 4, 2012, pp.660-667} , and that the exercises for functional recovery of patients with this imbalance must be performed with reduced activation to avoid fatigue (around 20% to 40% of maximum voluntary contraction)^{BMC Musculoskelet Disord. 2010;11(45):1-12}. Furthermore, high levels of activity may be associated with ‘overflow’ to other scapular muscles such as upper trapezius and even the latissimus dorsi.

Others argue that the exercises need to be performed in weight bearing and in kinetic chain patterns to truly imitate what the muscle does in gross kinetic chain function^{Journal of Athletic Training 2015;50(2):199– 210 Clin Sports Med. 2008;27:821 – 831 J Athl Train. 2000;35:329-337}. They have made the point that in normal sports specific movements, early upper trapezius activity is normal, and thus rehabilitation for athletes should encourage early upper trapezius activation^{International Journal of Sports Medicine, 18, 618–624}. Some of the more significant findings worth mentioning in relation to lower trapezius activation with rehabilitation exercises are as follows:

1. Many studies recognise the importance of glenohumeral external rotation in activating greater lower trapezius activation^{ConScientiae Saúde, vol. 11, núm. 4, 2012, pp. 660-667 International Journal of Sports Medicine, 18, 618–624 Phys Ther. 1993;73:668-677 Journal of orthopaedic & sports physical therapy 2009 39(10); 743-752 J. Phys. Ther. Sci. 2015 27: 97–100}. Exercises such as the ‘scaption’^{ConScientiae Saúde, vol. 11, núm. 4, 2012, pp. 660-667}, ‘robbery exercise’^{Shoulder. J Sport Rehabil (1995) 4: 122-154 Am J Sports Med. 2008; 36(9):1789–1798}, the lawn mower’ and the ‘shoulder horizontal with external rotation’, all elicit greater levels of lower trapezius activation. The reason for this is supported by the work of Kibler et al (2006), which states that the rotator cuff and scapular stabilisers work together to maintain optimal lengthtension relationships in the rotator cuff^{Am J Sports Med. 2006;34(10):1643–1647}. They postulated that with shoulder external rotation, as the humeral attachment of the infraspinatus and posterior deltoid approximates the scapula, the muscle would lose optimal length-tension. Therefore if the scapula was to retract as the same time as humeral external rotation, the medial scapula would move away from the humeral attachment, thus maintaining the length-tension relationship.
2. Arm elevation position also seems to be important. Abduction angles around 130 degrees seem to elicit the greatest lower trapezius activation whilst still minimising upper trapezius^{Am J Sports Med. 2008; 36(9):1789–1798 J Orthop Sports Phys Ther. 2003;33(5):247– 258 Physical Therapy in Sport 2001;2:178–185 Sports Med. 2009;39(8):663–685}. For example, Ekstrom et al (2003) used surface EMG during 10 different exercises. They demonstrated that the position in which the participants elevated the humerus above the head in line with the lower trapezius muscle fibres activated the lower trapezius up to 97% MVIC^{J Orthop Sports Phys Ther. 2003;33(5):247– 258}.

Exercises for lower trapezius

Scapular resetting (neutral position – Figures 4a-c)

The clinician can assess possible scapula muscle imbalance by simply evaluating the scapula position in a standing position. If the scapula appears to be downwardly rotated/ anterior tilted and protracted, it can be argued that an imbalance exists between the downward rotators/ anterior tilters/protractors such as pectoralis minor and the upward rotators/posterior tilters and retractors (lower trapezius). This can be seen below in Figure 4 in a client’s right scapula.

Therefore a simple and relatively safe (for all shoulder injuries) exercise is an active scapula ‘setting drill’. In this exercise the client is guided by the clinician to gently actively posterior tilt, upwardly rotate and retract. Also have them actively externally rotate the humerus gently. The clinician can palpate the lower trapezius for activation and this position can be held for 10 second holds. Once this ability is developed, resistance can be added in the form of tubing around the acromian to force the scapula into more downward rotation.

Scapula re-setting in the horizontal plane (Figures 5a-c)

This is an exercise progression aimed to encourage the retraction and depression role of the lower trapezius. Weight is needed to create a drag effect on the scapula into protraction and elevation to create the necessary length-tension curve for the lower trapezius.

a. The client is positioned in one hand supported prone (one-arm row posture) with a 2.5kg weight (women) or 5kg (men).

b. The client is encouraged to allow the scapula to ‘hang’.

c. The clinician then guides the appropriate movements of retraction and depression.

d. The client is encouraged to slightly externally rotate the humerus during the movement and to keep the lift of the dumbbell only subtle (one inch is enough).

e. This position can be held for a 5 second contraction.

f. Care must be taken to avoid excessive upper trapezius (the client will lift the shoulder towards the ear), excessive latissimus dorsi (the arm will move slightly into extension) and rhomboids (the muscles will bunch and the scapula will be seen to downwardly rotate).

Scapula setting in elevated plane (Figures 6a-c)

This is a further progression that is appropriate for those with minimal pain on shoulder elevation. If the client is suffering current shoulder pain during elevation then this would be inappropriate.

a. The client sits and holds a lat pulldown bar. The weight needs to be sufficient to create an elevation drag effect.

b. The client sits back slightly so that the trunk angle is approximately 70-80°. This allows the humerus to follow the ‘scaption’ plane.

c. The client is guided to gently retract and depress the scapula using the lower trapezius. Similar to the above exercise, they are encouraged to gently externally rotate the humerus. As the bar is a solid object, they are encouraged to simply and gently ‘bend the bar’.

d. Again care must be taken to keep the movement subtle to avoid excessive latissimus dorsi and/or rhomboid activation.

High level activation – reach, twist and lift (Figures 7a-d)^{Long Z and Casto B (2014) The Cross Fit Journal. The Optimal Shoulder. journal. crossfit.com}

This is an exercise best suited to end stage rehabilitation or as a ‘prehab’ setting exercise prior to training. The client will need a pain-free shoulder to perform this movement.

1. Assume the position shown in 7a above.
2. Slowly reach the hand along the floor to create scapula upward rotation.
3. Now slowly externally rotate the humerus.
4. Now slowly lift the arm off the floor to encourage retraction and posterior tilt of the scapula.
5. Hold for 5 seconds and repeat.

Summary

The lower trapezius is an important periscapula muscle that plays a vital role in both dynamic scapula movement as well as holding the scapula stable when required in overhead functional movements. It has been shown that a dysfunction between the lower trapezius in terms of activation exists in the presence of shoulder pain. Therefore it is a muscle that requires direct activation work for it to regain its functional role in scapula control. This article presents a number of exercises that can be utilised to activate the lower trapezius from early stage painful shoulder stages to end stage high performance.
